Front & Rear Dual spring Suspension
Powerful motor
Advanced Brake System
All-terrain tires
High-quality battery
Quick folding
LED high-definition display screen
Basic Spec.
- Unfolded Size
- 1170*590*1300mm
- Folded Size
- 1170*590*512mm
- Weight
- 22.3±0.5kg
- Handlebar Length
- 590mm
- Pedal Width
- 500*160mm
- Chassis Hegiht
- 140mm
- Waterproof Level
- IP54
- Speed Level
- 15km/h、 20km/h、 25km/h
- Uphill
- ≤19°
- Braking System
- Front & Rear Disc Brakes
- Braking Distance
- 3-5m
Motor
- Type
- Brushless Motor
- Max. RPM
- 580±20rmp/min
- Rated Power & Voltage
- 500W, 48V
- Max. Output Torque
- 23N.m
Battery
- Type
- 18650 Lithium Battery
- Rated Voltage
- 48V
- Capacity
- 15Ah
- Charging Time
- 7-8h
Tire
- Size
- 9"
- Type
- Pneumatic, Rubber
Charger
- Input Voltage & Current
- 100~240V, 2.5A
- Output Voltage & Current
- 54.6V, 2A
Display
- Size
- 118*73mm
- Type
- LED

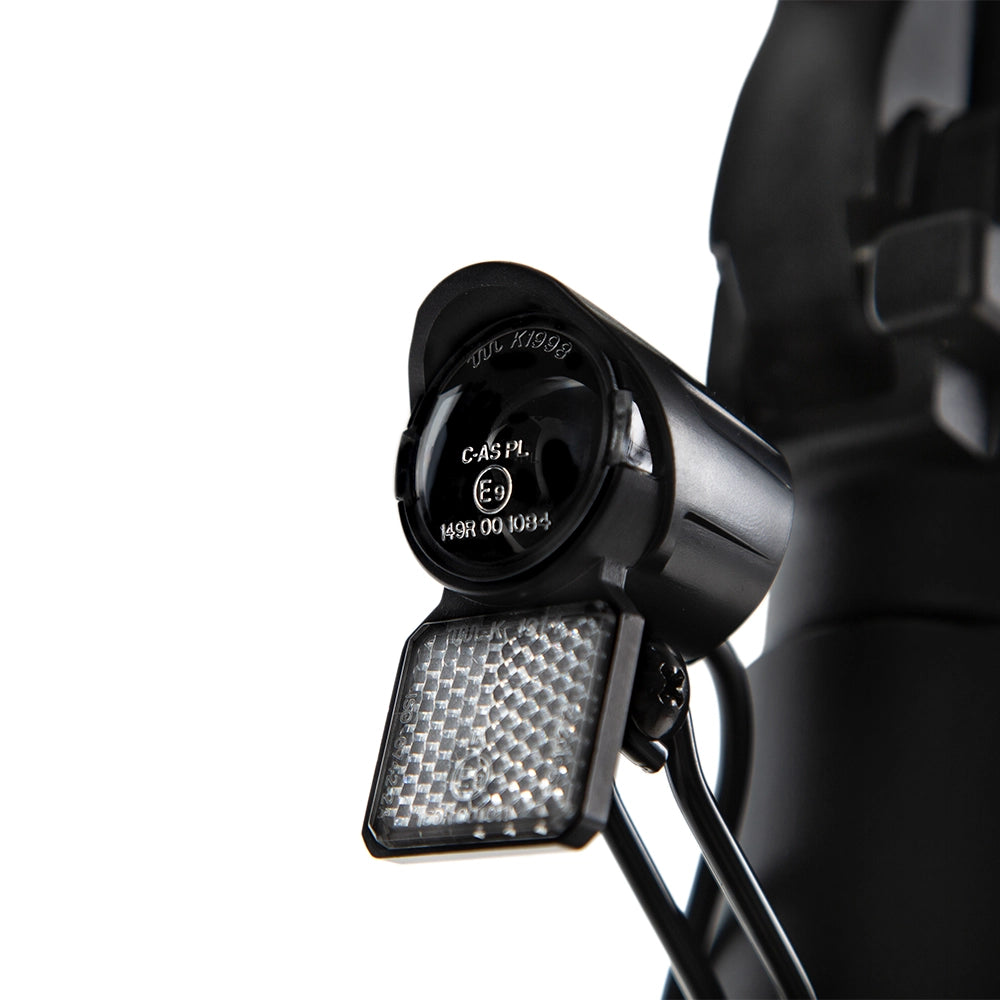

LED Light
- Headlight Power
- 2W
